2025 Lexmoto Diablo 125cc EFI E5 LJ125T-9M-E5. £1959.99

Please note if this motorcycle or scooter is currently showing out of stock on our site  it may be  in stock with Lexmoto if so it can be ordered in and prepared and on the road for you in a few days , please call for details . 01432 278103

This is an on the road price which includes :- Pre-delivery inspection , first registration fee , number plate , 12 months road tax ,  24 months parts & labour warranty .

About the Lexmoto Diablo 125 Euro 5

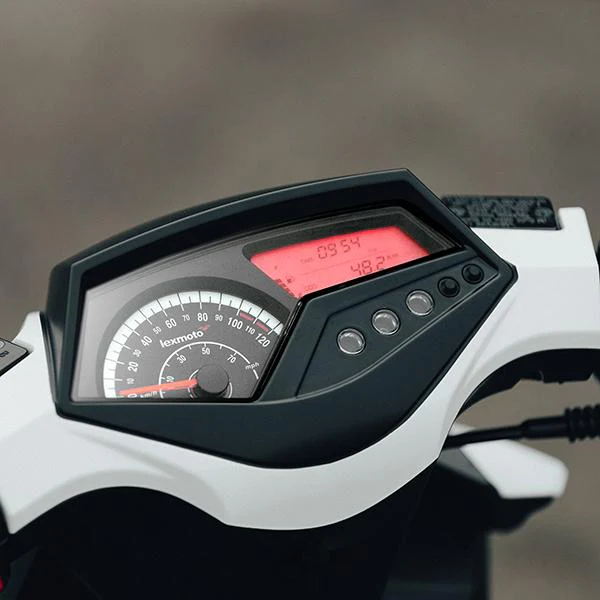

Sharp, sporty styling with an affordable price tag has made the Diablo a go-to choice for all learner legal riders making their own way in life. The racy 4 stroke engine packs a lot punch, and pair that with it`s lightweight frame the Diablo will have you flying off the line. A combined braking system with hydraulic disc brakes front and rear bring you to a safe and controlled stop every time. There`s a digital display and striking LED headlight unit that allows you to ride safely and illuminate the road ahead.

.

Lexmoto Diablo 125 Euro 5 Specifications

Performance

MAX SPEED :90 kph

MAX POWER :6.4kW @7500rpm

Engine and Transmission

ENGINE TYPE:Single Cylinder, 4 Stroke, Air Cooled

GEAR TYPE :Twist and Go

DRIVE TYPE :Belt

START SYSTEM :Electric Start

IGNITION TYPE :EFI

Wheel, Suspension and Brakes

FRONT TYRE :120/60-13

REAR TYRE :130/60-13

TYRE BRAND :CST

TYRE MODEL :Tubeless

FRONT SUSPENSION :Telescopic Forks

REAR SUSPENSION :Single Shock Absorber

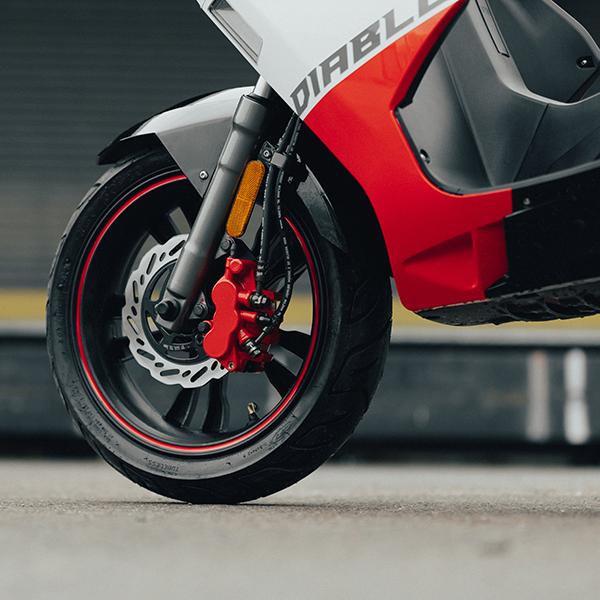

FRONT BRAKE :Hydraulic Disc

REAR BRAKE :Hydraulic Disc

Dimensions

SEAT HEIGHT :790 mm

WHEELBASE :1305 mm

OVERALL LENGTH :1840 mm

OVERALL WIDTH :690 mm

OVERALL HEIGHT :1150 mm

C LENGTH :1760

C WIDTH :570

C HEIGHT :870

Lexmoto Diablo 125 Euro 5 Technical Data

Model Information

FUEL TANK CAPACITY     6 l

Timing and Ignition

SPARK PLUG               CR7HSA

SPARK PLUG GAP     0.6-0.7mm

Valve Clearances

EXHAUST VALVE (METRIC)  0.07-0.12 mm

INLET VALVE (METRIC)  0.07-0.12 mm

Tyre Pressures

FRONT     29 psi

REAR        32 psi

Fluids

ENGINE OIL VISCOSITY    10w/40

ENGINE OIL VOLUME    800-1000 ml
